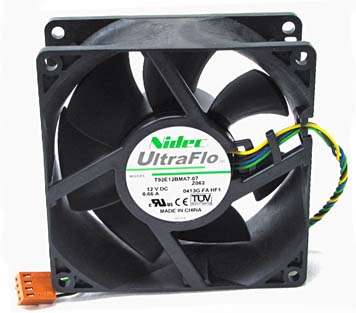

Nidec Ultraflo T92E12BMA7-PWM 92 x 38mm fan with PWM |
|
|
| |
| Part Number |
T92E12BMA7-PWM |
| Make |
Nidec |
| Fan Size |
92 x 92 x 38mm |
| Bearing |
Dual Ball Bearing |
| Voltage |
12V DC rated, 7 - 13.8VDC operating |
| Power |
4.7W / 0.39A |
| Fan Speed |
4000 RPM |
| Air Flow |
83 CFM |
| Air Pressure |
0.50 inwg |
| Noise |
43.5 dBA |
| Connector |
4 wires, optional PWM connector |
|
| |

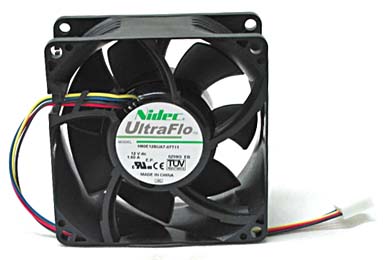

| Nidec Ultraflo H80E12BUA7-PWM 80 x 38mm fan with PWM |
|
| |
| Part Number |
H80E12BUA7-PWM |
| Make |
Nidec |
| Fan Size |
80 x 80 x 38mm |
| Bearing |
Dual Ball Bearing |
| Voltage |
12V DC rated, 7 - 13.8VDC operating |
| Power |
19.2W / 1.6A |
| Fan Speed |
8000 RPM |
| Air Flow |
108 CFM |
| Air Pressure |
1.51 inwg |
| Noise |
60 dBA |
| Connector |
4 wires, optional PWM connector |
|
* Actual products may differ from the shown photos on this website.
1st PC Corp may change the specifications and appearances of any products listed on this website without prior notice. |
