Lamptron Fan Controller

CW611 Water Cooling Fan Controller

CW611 specifications:

  • Dimension: 148.5 x 42.5 x 63mm (5.25" Drive Bay)
  • Power Output: Up to 36 watts per channel x 6 Channels
  • Panel Color Available: Black, Silver
  • DC Input: 3 x +12v (Standard 4 Pin Molex)
  • DC Output: 0 to +12V DC with standard D connector
  • Fan Connectors: 6 x 2510-3 pin connectors
  • Recommend PSU wattage: good quality 400w or higher

CW611 features:

  • One controller over air or water cooling for the entire system
  • Fully compatible with pump, flow meter, and cooling fans
  • Full flow number read out display
  • Reverse power and over-voltage protection
  • Newly improved, extra large LCD display
  • Made with extra premium components

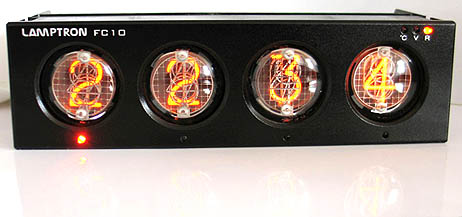

FC10 Steam Punk Fan Controller

FC10 specifications:

  • Dimension: 148.5 x 42.5 x 75mm (5.25" Drive Bay)
  • Power Output: Up to 30 watts per channel x 4 channels
  • Panel Color Available: Brass, Black, White, Black Bench Drawing
  • Metal, Black w/ Brass Trim
  • DC Input: 3X +12v (Standard 4 Pin Molex)
  • DC Output: 0V- 12V DC
  • Fan Connectors: 4X 3-pin connectors
  • Recommend PSU wattage: good quality 400w or higher

FC10 features:

  • Vintage Valve Amplifier in Steam Punk Design
  • Up to 30 watts per channel
  • CNC Milled from 3/4" Aluminum
  • Displays Celcius, Voltage, or RPM
  • Interchangable Faceplates


FC9 Fan Controller

FC9 specifications:
Dimensions: 148.5 x 42.5 x 76mm (standard 5.25" drive bay)
Power Output: Up to 50 watts per channel x 4 channels
LED Color Available: White, Blue, Green, Cyan, Red, Purple, Yellow
Panel Color Available: Black Anodized, or Silver
DC Input: +12V via standard 4-pin molex male connector
Fan Connectors: 4 x 3-pin male connectors
Recommended power supply wattage: 600w or higher

FC9 Features:
CNC Milled Front Panel with lLaser Etched Logo and Channel Lettering
Customizable Channel LED's
P/N: FC-FC9B for black, or FC-FC9S for silver

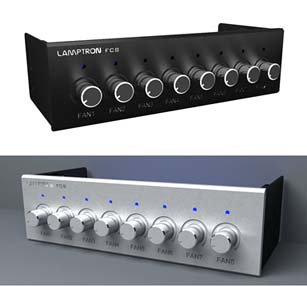

FC8 8-channel Fan Controller

FC8 Specifications:
Dimensions: 148.5 x 42.5 x 76mm (standard 5.25" drive bay)
Power Output: Up to 30 watts per channel x 8 channels
LED Color Available: White, Blue, Green, Cyan, Red, Purple, Yellow
Panel Color Available: Black Anodized, or Silver
DC Input: +12V via standard 4-pin molex male connector
Fan Connectors: 8 x 3-pin male connectors
Recommended power supply wattage: 600w or higher

Features:
CNC Milled Front Panel with laser Etched Logo and Channel Lettering
Customizable Channel LED's
P/N: FC-FC8B for black, or FC-FC8S for silver

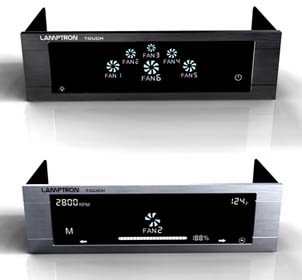

FCT Fan Controller with Touch Screen

FCT has a touch screen that is both gorgoeus to look at and highly functional. Auto speed setting enables you to literally set the fan speed with one touch, or you can manually adjust each of the 6 cooling fans rated up to 30W each. You can adjust RPM or voltage of the fans and see temperature in Celsius or Fahrenheit. With the touch screen and without any protruding knob, now your case door can close nicely with this fan controller.

Fits in any standard 5.25" drive bay, easy installation
6 x 3-pin connectors to fan, 1 x 4-pin molex to power supply
P/N: FC-FCT-B for black, FC-FCT-S for silver





FC5 V2 Fan Controller

FC5 fan controller can control 4 x 12V cooling fans up to 30W/2.5A per each fan. Digital display shows fan RPM, voltage, and temperature, and manual stepless speed control is available independently with each fan. Choose from 7 different colors for the digital display which itself is framed in CNC milled solid aluminum available in anodized black or silver.

Fits in any standard 5.25" drive bay, easy installation
4 x 3-pin connectors to fan, 1 x 4-pin molex to power supply
Retail package contains 20 units in a box, shipping weight 8 lbs
P/Nr: FC-FC5-B for black, FC-FC5-S for silver

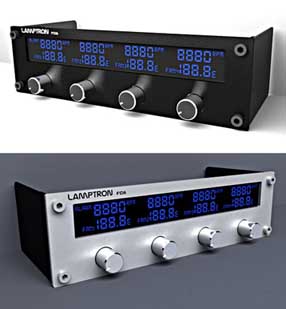

FC6 Fan Controller

  • LCD display with 7 changeable colors in Blue, Green, Red, Yellow, Cyan, Purple, and White
  • Top line displays cooling fan RPM; bBottom line displays either temperature (Celsius or Fahrenheit), or fan voltage
  • Alarm is triggered when temperature is over 70 degree C, or if the fan fails to work when voltage is over 6.5V
  • Industrial minimalism design with simple operation
  • Solid Aluminum in black or silver front bezel finish
  • 4 channels stepless fan speed control with up to 10W per channel output
  • Standard molex 4-pin connector to power supply
  • Standard 3-pin connection to cooling fans
  • Dimension: 148.5 x 42.5 x 75mm - fits standard 5.25" drive bay
  • Color Retail Package
  • P/N: FC-FC6-B for black or FC-FC6-S for silver

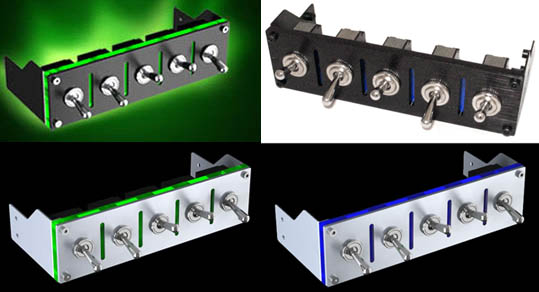

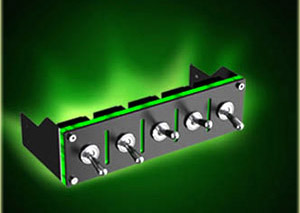

Hummer 12V Device & Fan Controller

  • Hummer 5-channel fan controller is perfect for those who need to turn cooling fans on or off anytime they choose. You can also power lights and other 12V devices with the Hummer. The high quality military style switch looks great and is easy to use.

    Hummer Features:
  • 5 independant military style switches turn devices on or off
  • Each chanel capable of controlling 100W power output
  • CNC milled solid aluminium panel of up to 3/4"
  • Green or Blue acrylics front panel insert
  • Able to turn on or off 12V devices within the power capability
  • 5 x 4-pin molex connector to fan or other 12V devices
  • 1 x 4-pin molex connector to power supply
  • Fits any standard 5.25" drive bay (5-7/8" x 1-5/8")
  • Available in black anodized aluminium or aluminum silver
  • Retail package contains 20 units in a box, shipping weight 8 lbs
  • Item Number: FC-Hummer-B for Black/Green acrylic, FC-Hummer-S for Silver/Green acrylic
  • P/N: FC-Hummer-BBL for Black/Blue acrylic, FC-Hummer-SBL for Silver/Blue acrylic

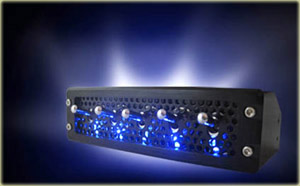

Fan-Atic Fan Controller

Fan-Atic 5-channel fan controller controls over 60W of power per each channel with 3 different voltage output - 12VDC, 5VDC, and Off, which correspond to High RPM, Low RPM, and Off setting on the fan connected to the controller. The CNC milled heavy metal mesh front panel simply looks cool on your system.

Fan-Atic Features:
CNC milled solid aluminium panel of up to 3/4"
5 independant channels with 60W output per each channel
A total of 300W output control capability across all channels
Red LED indicates high RPM setting
Blue LED indicates low RPM setting
Off setting for all connected fans
5 x 3-pin connectosr to fan, 1 x 4-pin molex connector to power supply
Non-direct light technology LED voltage indicator avoids light interfere
Fits any standard 5.25" drive bay (5-7/8" x 1-5/8")
Available in black anodized aluminium or aluminum silver
Retail package contains 20 units in a box, shipping weight 8 lbs
P/N: FC-Fanatic-B for black, FC-Fanatic-S for silver



FC4 Fan Controller

FC4 controls up to 4 cooling fans with 20W maximum per each fan. This quality fan controller's front panel is milled from solid aluminum and it can definitely add to the overall look and functions of your desktop system.

FC4 features:
CNC milled solid aluminium panel of up to 3/4"
4-channel x 20W per channel power control with stepless RPM control
Blue LED brightness intensifies as cooling fan's RPM climbs
4 x 3-pin connector to fan, 1 x 4-pin molex connector to power supply
Fits any standard 5.25" drive bay (5-7/8" x 1-5/8")
Available in black anodized aluminium or aluminum silver
Retail package contains 20 units in a box, shipping weight 8 lbs
P/N: FC-FC4-B for black, FC-FC4-S for silver

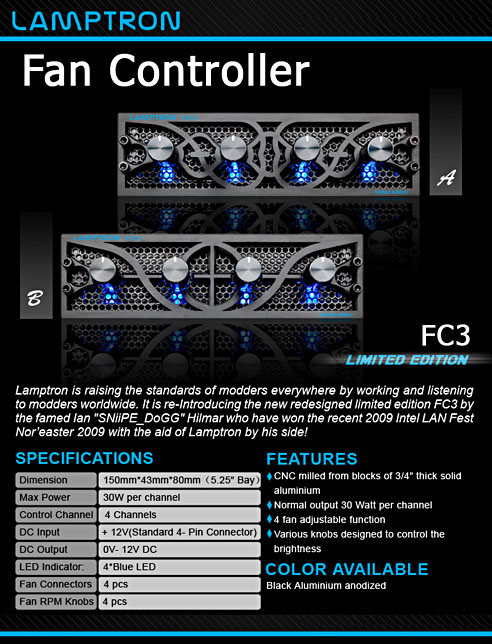

FC3 Limited Edition Fan Controller
Item Number: FC-FC3LE-A or FC-FC3LE-B

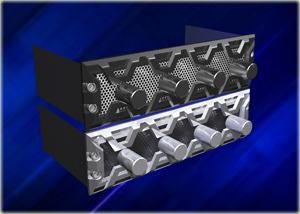

FC3 Fan Controller

FC3 is designed to seamlessly integrate with the modern high-end PC chassis. It can control up to 4 cooling fans with up to 30W of output per each fan. FC-3 is a perfect fit to power users who demand the best.

FC3 Features:
CNC milled solid aluminium panel of up to 3/4"
4-channel x 30W per channel power control with stepless RPM control
Blue LED brightness intensifies as cooling fan's RPM climbs
4 x 3-pin connector to fan, 1 x 4-pin molex connector to power supply
Fits any standard 5.25" drive bay (5-7/8" x 1-5/8")
Available in black anodized aluminium or aluminum silver
Retail package contains 20 units in a box, shipping weight 8 lbs
P/N: FC-FC3-B for black, FC-FC3-S for silver

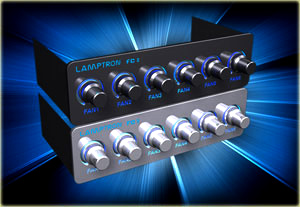

FC2 Fan Controller

FC2 Features:
CNC milled solid aluminium panel of up to 3/4"
6-channel x 45W per channel power control with stepless RPM control
Blue LED brightness intensifies as cooling fan's RPM climbs
6 x 3-pin connector to fan, 1 x 4-pin molex connector to power supply
Fits any standard 5.25" drive bay (5-7/8" x 1-5/8")
Available in black anodized aluminium or aluminum silver
Retail package contains 20 units in a box, shipping weight 8 lbs
P/N: FC-FC2-B for black, FC-FC2-S for silver

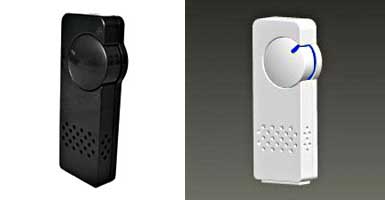

FC1 Fan Controller

FC1 Features:
Control up to 2 cooling fans
Compact size, easy to use thumb dial
Blue LED light with thumb dial
Dimensions: 72mm x 29mm x 13mm
Available in Black or White finish
P/N: FC-FC1-BK for black, FC-FC1-WH for white



Now Lamptron Fan Controllers are available at http://www.amazon.com, just search for "Lamptron".
